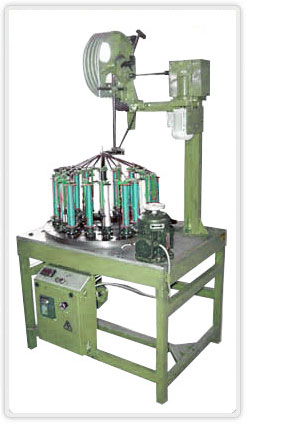

In solid cord braiding machine all carriers travel in the same direction, one carrier going under the two preceding it, forming a cord by producing a series of lock stitches. As the cord forms, it is drawn through a former, which keeps the cord central against the pull of the several carriers, thus forming an even, round and solid cord.

These solid cord braiding machine are designed and intended for use where a solid braided rope is required without a core. They can, if necessary, be used with a core. B & B offers 9, 12 and 18 carriers braiders with spring loaded system.

Features:

• B & B offers 9, 12 and 18 carriers braiders with spring loaded system.
• Vertical Axis, Vertical carriers.
• Heat treated braided plate and track .
• Heat treated horn gears and horn plate.
• Overload motor protection.
• Line forward/ reverse jog.
• Automatic machine shut off for broken end, empty bobbin.

           Download Brochure (Size: 63 KB)

Consult B & B with details of your own specific requirements.
